10 mm/ft scale
T187, T188
CR 4-6-0 Class 60 driving wheels.

6′ 1″ diam., 20 oval spokes, rectangular inner rim, apparent tread 4″.
Hub 21″ face dia., 2″ out from the tyre, pin between at 13″.

Source: works drawing.

Castings: 60.8 mm tread dia., 54.3 mm i/d., hub 1.7 mm out from the tyre, pin at 10.8 mm.

Casting prices and stock . CR loco sets, price list

Scan of the castings in a set for a CR 4-6-0 Class 60

Scan of castings T187 and T188

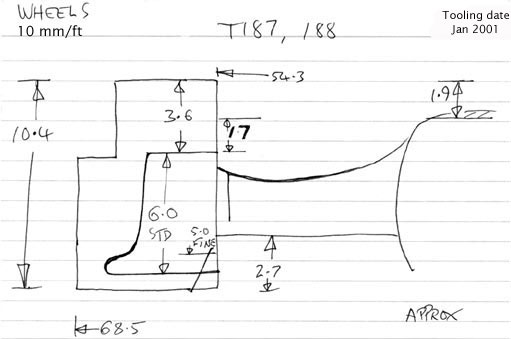

Cross section diagram of castings T187 and T188
