10 mm/ft scale
T182
L & Y 2-4-2T class 5 - bogie wheels.

3′ 7½″ diam., 10 oval spokes, apparent tread 4″.
Hub 14½″ face dia., 2″ out from the tyre.

Casting: 36.25 mm tread dia., 29.7 mm i/d., hub 1.7 mm out from the tyre.

Casting prices and stock . L and Y loco sets, price list

Scan of a casting and more infomation L & Y 2-4-2T class 5 - bogie only

Scan of casting T182

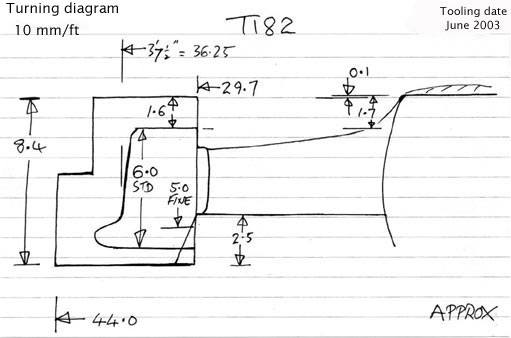

Cross section diagram of casting T182
