10 mm/ft scale
T131
M&SW Junc. 2-6-0 No 14 driving wheels.

4′ 0″ diam., 13 rectangular spokes, rectangular inner rim, apparent tread 2¾″.
Hub 15½″ face dia., ½″out from the tyre, pin between at 13″.

Source: works drawing.

Casting: 40.0 mm tread dia., 35.0 mm i/d, hub 0.4 mm out from the tyre, pin at 10.8 mm.

Casting prices and stock . MSWJR loco sets, price list

Scan of a casting for a M&SW Junc. 2-6-0 No 14

Scan of casting T131

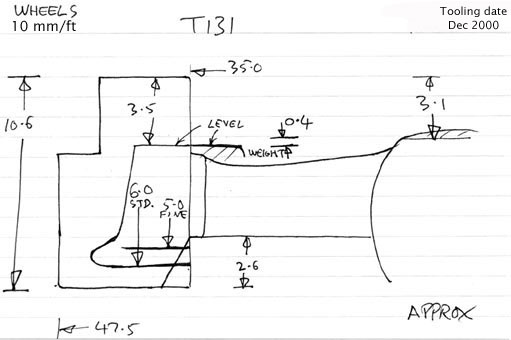

Cross section diagram of casting T131
