10 mm/ft scale
T130
M&SW Junc. 2-6-0 No 14 plain wheels.

2′ 9″ dia., 9 rectangular spokes, rectangular inner rim, apparent tread 3″.
Hub 13″ face dia., ½″ out from the tyre.

Source: works drawing.

Casting: 27.5 mm tread dia., 23.0 mm i/d., hub 0.4 mm out from the tyre.

Casting prices and stock . MSWJR loco sets, price list

Scan of a casting for a M&SW Junc. 2-6-0 No 14

Scan of casting T130

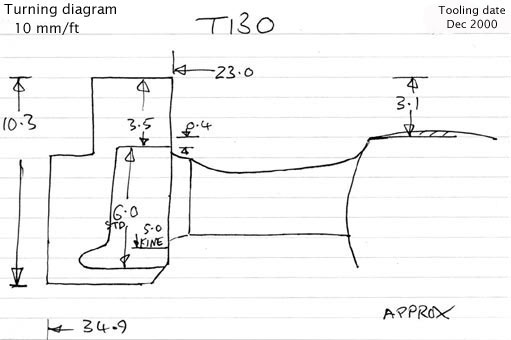

Cross section diagram of casting T130
