10 mm/ft scale
T113
CR 4-6-0 class 60 bogie wheel.

3′ 6″ diam., 10 oval spokes, rectangular inner rim, apparent tread 4½″.
Hub 13½″ face dia., 1¾″ out from the tyre.

Casting: 35.0 mm tread dia., 27.5 mm i/d., hub 1.5 mm out from the tyre.

Casting prices and stock . CR loco sets, price list

Scan of a casting in a set for a CR 4-6-0 Class 60

Scanof casting T113

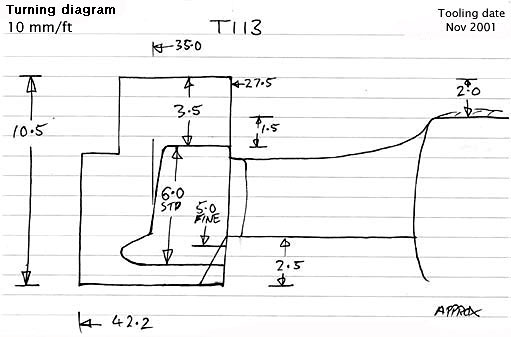

Cross section diagram of casting T113
