T110
LNER bogie wheel.

3′ 2″ diam., 12 oval spokes, apparent tread 4¾″.
Hub 12½″ face dia., ¾″ out from the tyre.

Casting: 31.7 mm tread dia., i/d 23.6 mm.
Hub 0.7 mm out from the tyre.

Casting prices and stock . LNER loco sets, price list

Scan of a casting in a set for a LNER 4-6-0 B17 with a GE pattern tender . with a LNE pattern tender

Scan of casting T110

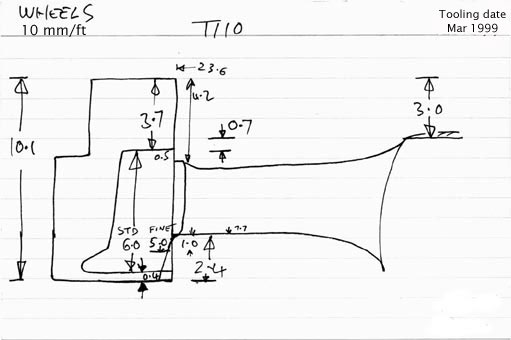

Cross section diagram of casting T110
