T106
GER 4-6-0 B12 bogie wheel.

3′ 3″ diam., 10 oval spokes, rim with a raised central hump, 4½″ apparent tread, tyre width 5⅜″.
Hub 12½″ face dia., 2¼″ out from the tyre.

Source: No 1572 (= No 8572) measured direct at Weybourne and GER Soc drg.

Casting: 32.5 mm. tread dia., 25.0 mm i/d., hub 1.9 mm out from the tyre.

Casting prices and stock . GER loco sets, price list

Scan of a casting in sets for GE 4-6-0 S69/LNER B12/2

Scan of casting T106

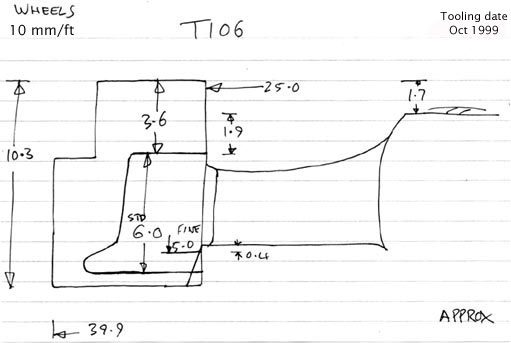

Cross section diagram of casting T106
