10 mm/ft scale
T96
GE 4-4-0 T19/LNER D13, 0-4-4T S44/LNER G4 plain wheels.

3′ 1″ diam., 8 rectangular spokes, rectangular inner rim, apparent tread 4½″.
Hub 12½″ face dia., 1½″ out from the tyre.

Casting: 30.8 mm tread dia., 23.3 i/d., hub 1.2 mm out from the tyre.

Casting prices and stock . GER loco sets, price list

GER T19/LNER D13 . GER 0-4-4T S44/LNER G4

Scan of casting T96

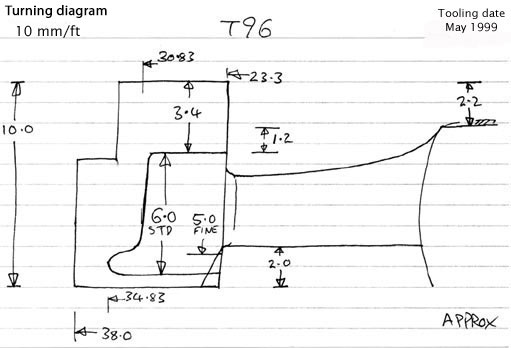

Cross section diagram of casting T96
