10 mm/ft scale
T94, T95
GE 4-4-0 S46/LNER D14, 15, 16 driving wheels.

7′ 0″ diam., 20 oval spokes, rectangular inner rim, apparent tread 4 11/16" (=3″ tyre thickness plus overlap).
Hub 16″ face dia., 4⅜″ out from the tyre, pin between at 12″.

Source: works drg. from Machine Drawing and Design.

Castings: 70.0 mm tread dia., 62.1 mm i/d., hub 3.5 mm out from the tyre, pin at 10.0 mm.

Casting prices and stock . GER loco sets, price list

Scan of the castings in a set for a GE 4-4-0 S46/LNER D14, 15, 16

Scan of castings T94 and T95

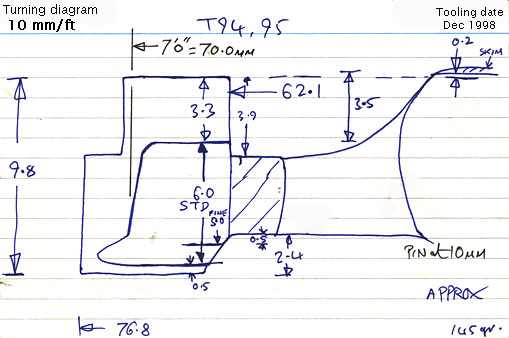

Cross section diagram of castings T94 and T95
