10 mm/ft scale
T70
GER 0-4-0T 209 Class as built by Neilson.

3′ 6″ diam., 8 'tee' shaped spokes.
Hub level with the tyre, pin between at 10″.

Casting: 35.0 mm tread dia., 29.3 mm i/d., hub level with the tyre, pin at 8.3 mm.

Casting prices and stock . GER loco sets, price list

Scan of castings in a set for a GER 0-4-0T 209 Class as built

Scan of casting T70

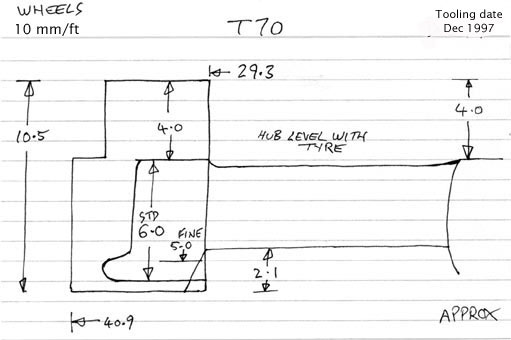

Cross section diagram of casting T70
