10 mm/ft scale
T27
GE 0-4-4T S44/LNER G4 and 0-6-0 N13/LNER J14 driving wheels.

4′ 11″ diam., 15 oval spokes, slightly humped rim, apparent tread 5″.
Hub 14½″ face dia., 2⅛″ above the tyre, pin in line at 12″.

Source: drawing by Lynn Brooks, pers com. 1998.

Casting: 49.17 mm tread dia., 40.7 mm i/d., hub 1.9 out from the tyre, pin at 10.0 mm.

Casting prices and stock . GER loco sets, price list

Scan of castings in a set for a GE 0-4-4T S44/LNER G4 . GE 0-6-0 N13/LNER J14

Scan of casting T27

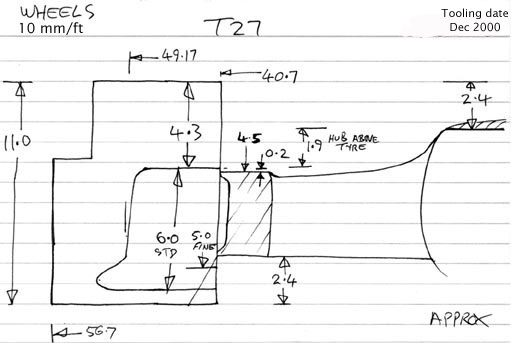

Cross section diagram of casting T27
