10 mm/ft scale
T17
Solid spoke wagon wheel.

2′ 9″ diam., 8 oval spokes, apparent tread 2¾″.
Hub: ½″ out from the tyre.

Casting: 27.5 mm tread dia., 23.2 i/d., hub 0.4 mm above the tyre.

Casting prices and stock . Wagon sets, price list

Scan of casting T17

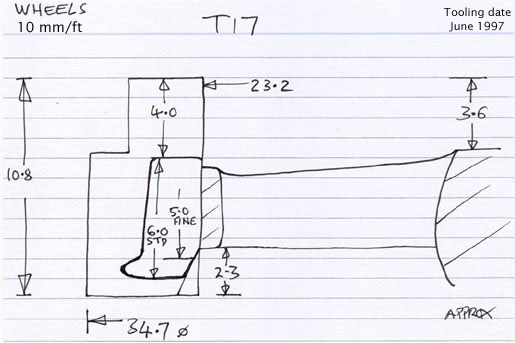

Cross section diagram of casting T17
