10 mm/ft scale
T16
R.C.H. solid spoke wagon wheel.

3′ 1½″ diam., 8 oval spokes, apparent tread 2¾″.
Hub ¾″ out from the tyre.

Casting: 31.25 tread dia., 27.1 i/d., hub 0.5 mm out from the tyre.

Casting prices and stock . Wagon sets, price list

Scan of casting T16

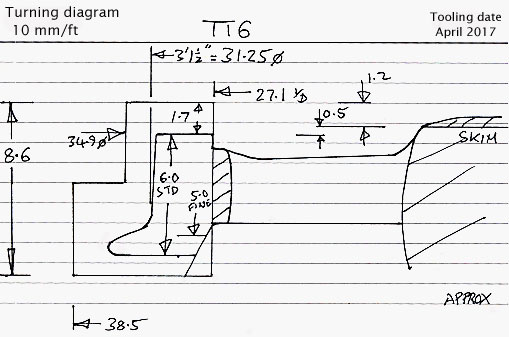

Cross section diagram of casting T16
