ECR/GER 2-2-2 Sharp Single plain and tender wheel.

3′ 6½″ diam., 10 rectangular spokes, rectangular inner rim, 3″ apparent tread.
Hub 12″ face dia., ½″ out from the tyre.

Source: GER Locomotives in Locomotive Magazine, figs. 76, 82. Some dimensions estimated.

Casting: 33.3 mm tread dia., 28.3 i/d, hub 0.4 mm out from the tyre.

Casting prices and stock . GER loco sets, price list

Scans of a casting in a set for an ECR/GER 2-2-2 Sharp Single.

Scan of casting P486   Scan of casting P486

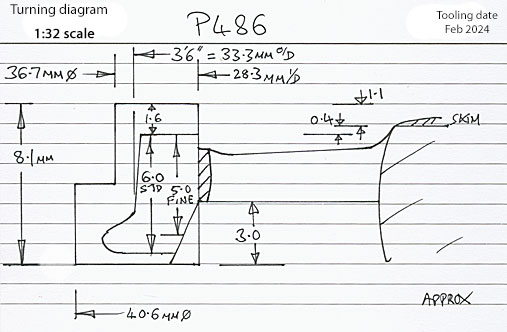

Cross section diagram of casting P486
