1:32 scale
P485
ECR/GER 2-2-2 Sharp Single driving wheel.

5′ 6″ diam., 18 rectangular spokes, rectangular inner rim.
Hub 14″ face dia., 1″ out from the tyre.

Source: GER Locomotives in Locomotive Magazine, figs. 76, 82. Some dimensions estimated.

Casting: 52.4 mm tread dia., 47.6 i/d, hub 0.8 mm out from the tyre.

Casting prices and stock . GER loco sets, price list

Scans of a casting in a set for an ECR/GER 2-2-2 Sharp Single.

Scan of casting P485   Scan of casting P485

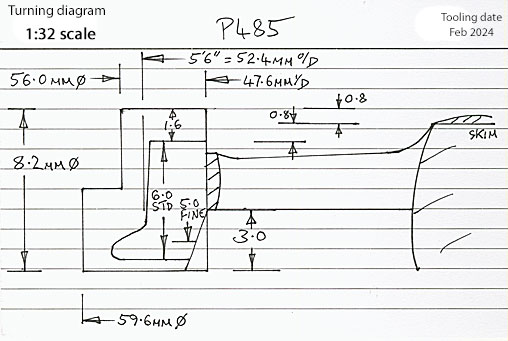

Cross section diagram of casting P485
