; Casting diagram, P362
Diagrams Index . Home
1:32 scale
P362
Switzerland, Jura-Simplon 4-4-0 A2/4, class tender wheels.

1020 mm (3′ 4″) diam., 9 oval spokes, rectangular inner rim, apparent tread 2¾.
Hub 210 mm; face dia., level with the tyre.

Source: works drawing.

Casting: 31.9 mm tread dia., 27.5 i/d, hub level with the tyre.

Casting prices and stock . Switzerland loco sets, price list

Scans of a casting in a set for the Jura-Simplon A2/4 class

Scan of casting P362

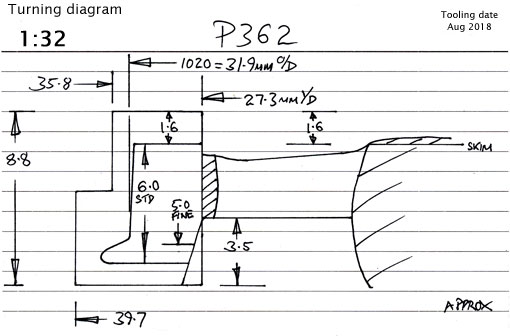

Cross section diagram of casting P362
