1:32 scale
P318, 319, 320
German 2-10-0 Class BR 52 driving wheels.

P318 are outer coupled wheels, P319 are mid coupled wheels, P320 are the driven wheels.

1400 mm, 4′ 7″ diam., 15 oval spokes.
Hub of P318, 318 14″ face dia, P320 16½″ face dia., ¾″ below the tyre. Pin at 13″

Casting: 43.8 mm tread dia., 37.0 mm i/d., hub 0.4 mm below the tyre. Pin at 10.3 mm.

Casting prices and stock . Germany loco sets, price list

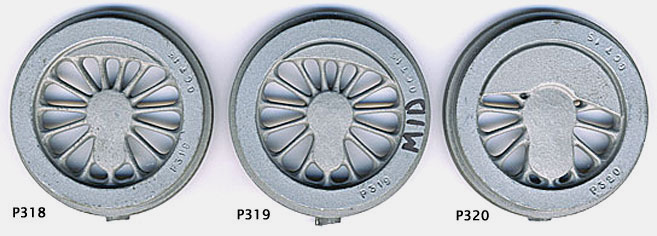

Scan of castings in a set for a German 2-10-0 Class 52

Scan of casting P318

Cross section diagram of casting P318
