1:32 scale
P304, P305
SECR class E and E1 driving wheels.

6′ 6″ diam., 20 oval spokes, rectangular inner rim, 4″ apparent tread,
hub 16″dia., 2″ out from the tyre, pin in line at 10″.

Source: works drawings.

Casting: 61.9 mm tread dia., 55.5 mm i/d., hub 1.6 mm out from the tyre, pin at 7.94 mm.

Casting prices and stock . SECR loco sets, price list

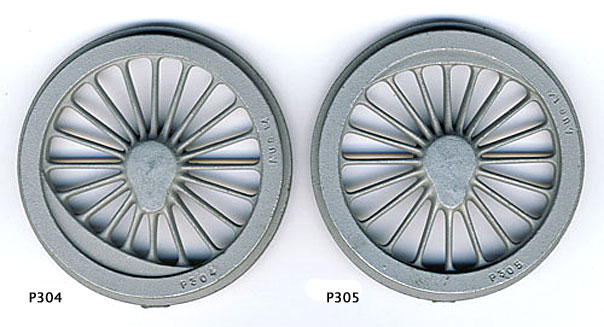

Scan of a casting in a set for a SECR class E

Scan of castings P304, P304 - waits casting

Cross section diagram of castings P304, P305 - waits casting
