Driving wheels for the New York Central 4-8-4 class S1b

6′ 7″ diam., Boxpok, apparent tread 3½″.
Hub 10½″ face dia., 2″ out from the tyre (estimated), pin at 16″
Weights 2″ out from the tyre (estimated).

Casting: 62.7 mm tread dia., 56.9 mm i/d., hub 1.6 mm out from the tyre, pin at 12.7 mm.

Casting prices and stock . USA loco sets, price list

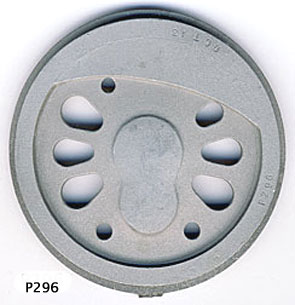

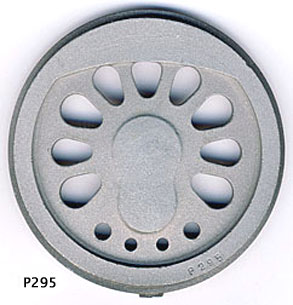

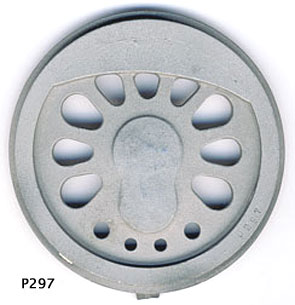

Scan of wax P295 Scan of wax P296 Scan of wax P297

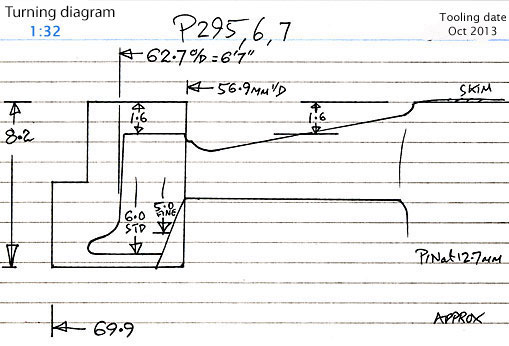

Cross section diagram of castings P295,6,7
