1:32 scale
P258
Australian NSWGR Class 50 outer driver.

Also suits South Maitland Railways 2-8-2 10 class

4′ 3″ diam., 13 oval spokes, hump rim, 4″ apparent tread, pin between at 13″.

Casting: 40.5 mm. tread dia, 34.3 mm i/d., hub 0.8 mm out from the tyre.

Casting prices and stock . Australian loco sets price list

More information

Scan of P258

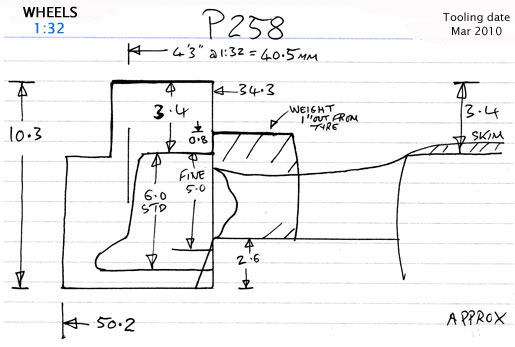

Cross section diagram of casting P258
