1:32 scale
P246
Somerset and Dorset 2-4-0 driving wheel.

5′ 0″ diam., 16 rectangular spokes, rectangular inner rim, 4″ apparent tread.
Hub 1″ out from the tyre, pin in line at 10″.

Casting: 47.6 mm tread dia., i/d 41.2 mm, hub 0.8 mm out from the tyre. Pin at 7.9 mm.

Casting prices and stock . S & D loco sets, price list

Scan of a casting in a set for a S and D 2-4-0

Scan of casting P246
Casting
Scan of a casting turned to 'dead scale'
With scale flanges

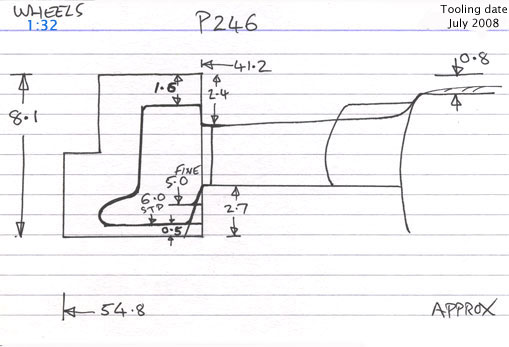

Cross section diagram of casting P246

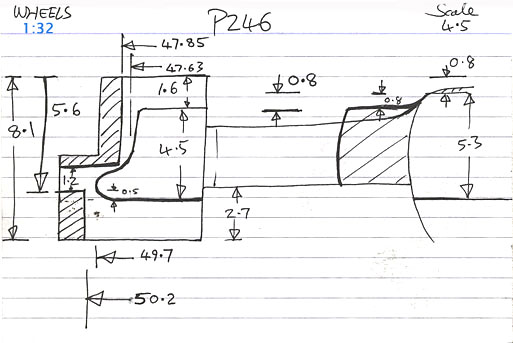

Cross section diagram of casting P246 'dead scale'

Diagram showing safe areas to be removed before using the form tool for scale tyre profile.

Photo of press discs
Press discs.
