PRR 4-6-0 G5 driving wheels.

5′ 8″ diam., 15 oval spokes, wide rectangular inner rim, apparent tread 3½″.
Hub 16¾″ face dia., 1″ out from the tyre, pin between at 14″.

Sources: drg of No 5720 and various photos.

Casting: 54.0 mm tread dia,m 48.6 mm i/d, hub 0.8 mm out from the tyre, pin at 11.1 mm.

Casting prices and stock . USA, loco sets, price list

More information.

Scan of casting P241, P242

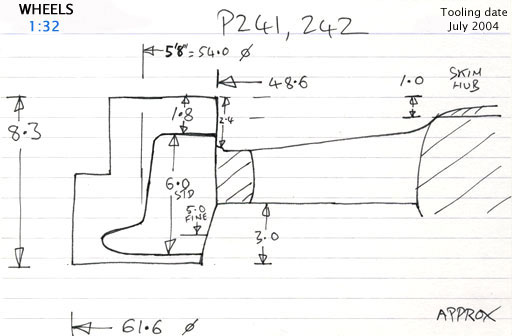

Cross section diagram of castings P241, P242
