4′ 8½″ diam., 12 spokes, plated between, vee inner rim, apparent tread 3¾″.
Hub 17″ face dia., ¾″ out from the tyre, pin between at 17″.

Source: works drawings.

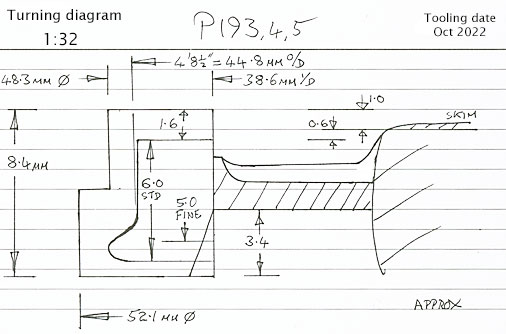

Castings: 44.8 mm tread dia., 38.9 mm i/d., hub 0.6 mm above the tyre, pin at 11.1 mm.

Casting prices and stock . MOS/WD loco sets, price list

Scan of a casting in a set for a WD 2-8-0 or 2-10-0
