1:32 scale
P156, P157
German 4-6-4T Class BR 62 driving wheel.

5′ 9″ (1,750 mm) diam., 18 oval spokes, reinforced near the pin.
Hub 19″ face dia, 2½″ out from the tyres, pin at 13″.

Casting: 54.7 mm tread diam., 48.6 mm i/d. Hub 2.0 mm out from the tyre.

Casting prices and stock . Germany loco sets, price list

Scan of castings in a set for a German 4-6-4T Class 62

Scan of casting P156, P157

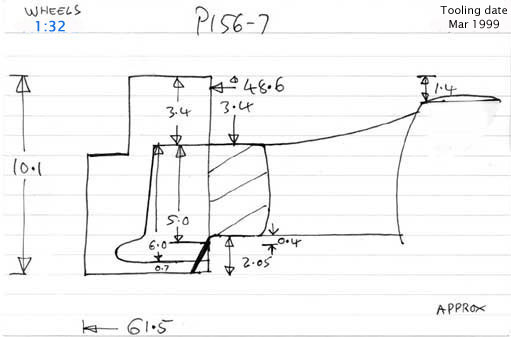

Cross section diagram of castings P156, P157
