1:32 scale
P70
GER 0-4-0T 209 Class as built by Neilson.

3′ 6″ diam., 8 'tee' shaped spokes.
Hub level with the tyre, pin between at 10″.

Casting: 33.3 mm tread dia., 28.2 mm i/d., hub level with the tyre, pin at 7.9 mm.

Casting prices and stock . GER loco sets, price list

Scan of a casting in a set for a GER 0-4-0T 209 Class as built

Scan of casting P70

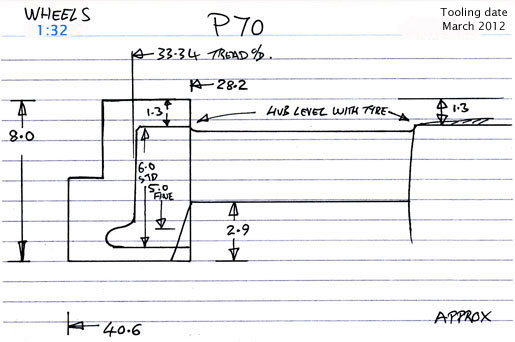

Cross section diagram of casting P70
