1:32 scale
P16
R.C.H. solid spoke wagon wheel.

3′ 1½″ diam., 8 oval spokes, apparent tread 2¾″.
Hub 1″ out from the tyre.

Casting: 29.8 tread dia, 25.5 i/d, hub 0.8 mm out from the tyre.
Tyre widths for exact scale models at 1:32, 5″ = 3.97 mm.

Casting prices and stock . Wagon sets, price list

Scan of casting P16

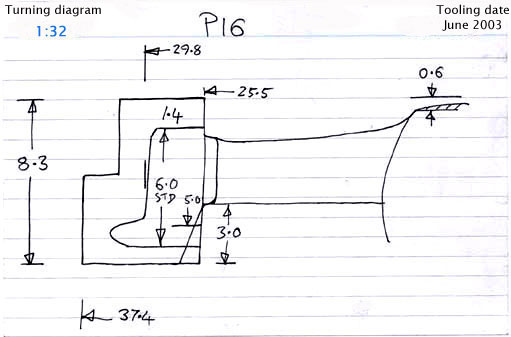

Cross section diagram of casting P16
