Sierra Leone Govt. Railways. 4-8-2+2-8-4 class 63 Garratt. 2′ 6″ Gauge. Drivers only.
Slightly undersize for model flange clearance (42.0 mm instead of 44.1 mm dia).
Per loco: 8 x J463 outer, 4 x J464 inner, 4 x J465 driven.

2′ 9″ dia., 8 oval spokes.
Hub 8½′ dia., level with the tyre.

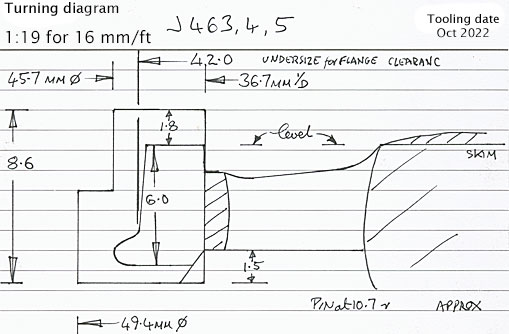

Casting: 42.0 tread dia., 36.7 i/d., hub level with the tyre.

Source: Sierra Leone drg. Z.9212/146. Contract for Beyer-Garratt Locomotives class '63'.
