1:24 scale
H332
Plain wheels for the SAR 2-8-4 classes 16E, 19D, 24 and 25 tender.

2′ 10″ diam., disc wheel. Tyre width 5″.
Hub 10½″ face dia., ½″ out from the tyre.

Source: works drawing.

Casting: 36.0 mm tread dia., 28.3 mm i/d., hub 0.5 mm out from the tyre.

Narrow gauge loco set prices . Casting prices and stock

Scan of a casting in a set for a SAR class 19D, SAR class 24, SAR class 25 .

Scan of casting H332

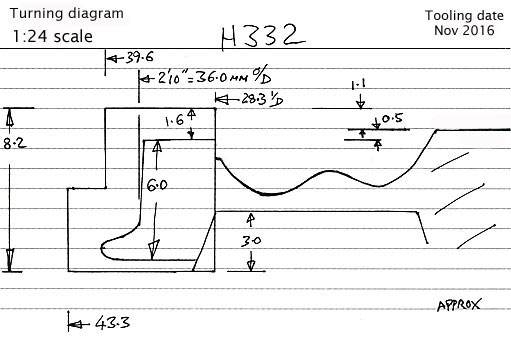

Cross section diagram of casting H332
