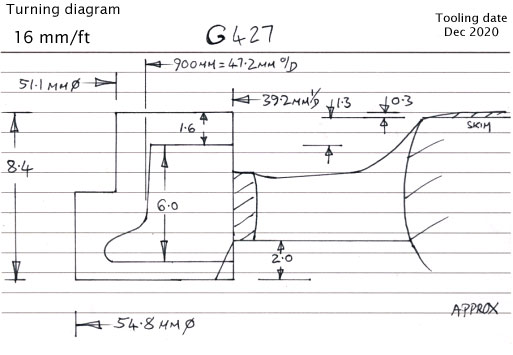

900 mm (2′ 11½″) diam., 9 round-topped spokes.
Hub 190 mm; dia., 25 mm out from the tyre. (Some dimensions estimated).

Casting: 47.2 tread dia., 39.2 i/d., hub 1.3 mm out from the tyre.
