1:13.26 scale
E265
Lynton and Barnstaple Railway. 1ft 11 ins gauge on 45 mm track.

2′ 0″ diam., disc wheel.
Hub 8″ dia., level with the tyre. (Some dimensions estimated).

Casting: 45.9 tread dia., 34.9 i/d., hub level with the tyre.

Narrow gauge loco set prices . Casting prices and stock

Casting E265

Casting

Machined casting E265

With G1MRA Standard tyre flanges

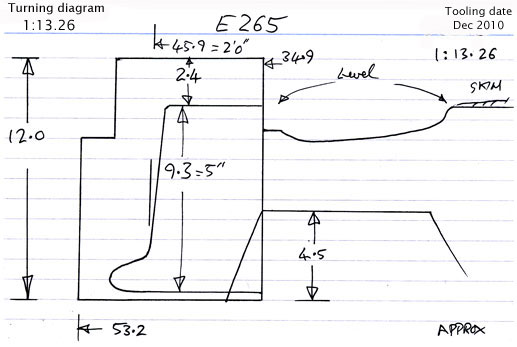

Cross section diagram of casting E265
