1:13.26 scale
E263, E264
Lynton and Barnstaple Railway. 1ft 11 ins gauge on 45 mm model track.

Manning Wardle 2-6-2T driving wheels.

2′ 9″ diam., 8 rect spokes, rectangular inner rim, outside frames so no pin on the wheel.
Hub 10″ dia, level with the tyre. (Some dimensions estimated).

Casting: 63.2 tread dia., 52.4 i/d., hub level with the tyre.

Narrow gauge loco set prices . Casting prices and stock

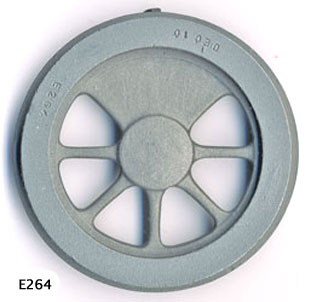

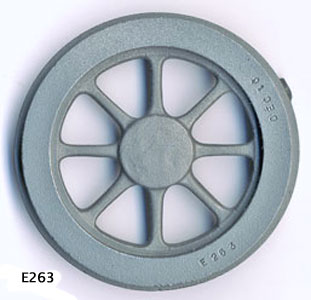

Casting E263Casting E264

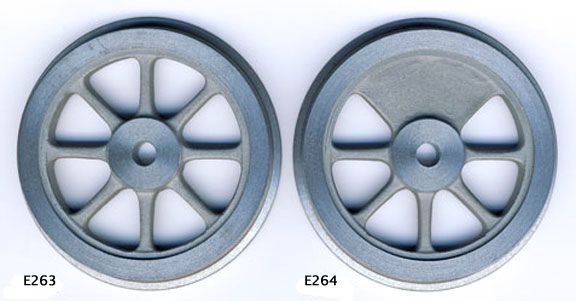

Machined castings E263, E264

Machined with a G1MRA Standard formtool

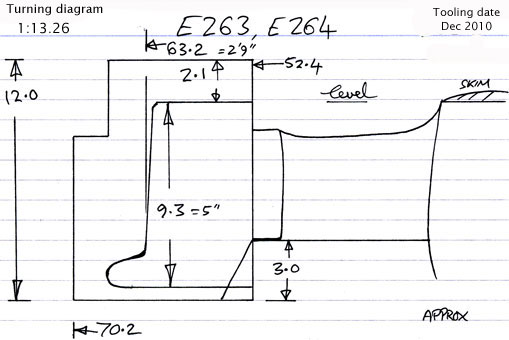

Cross section diagram of castings E263, E264
